Important Notice: Do not modify parameters at will. Any self-made changes within Fluidd are not covered by our after-sales support.
¶ Make an upgrade line

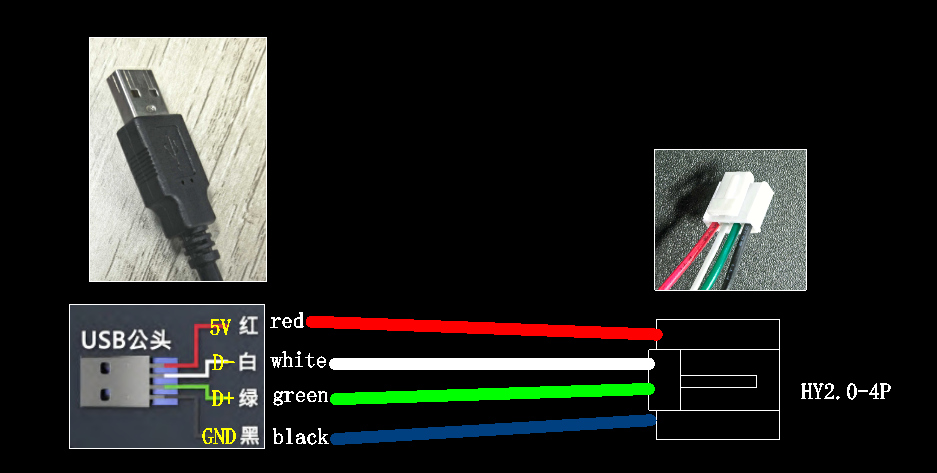

Buy a standard USBA cable and HY2.0-4P terminal, and connect as shown in the figure.
Store Purchase Link: AP Board Flashing Cable - M1
¶ The printer is connected to the upgrade line

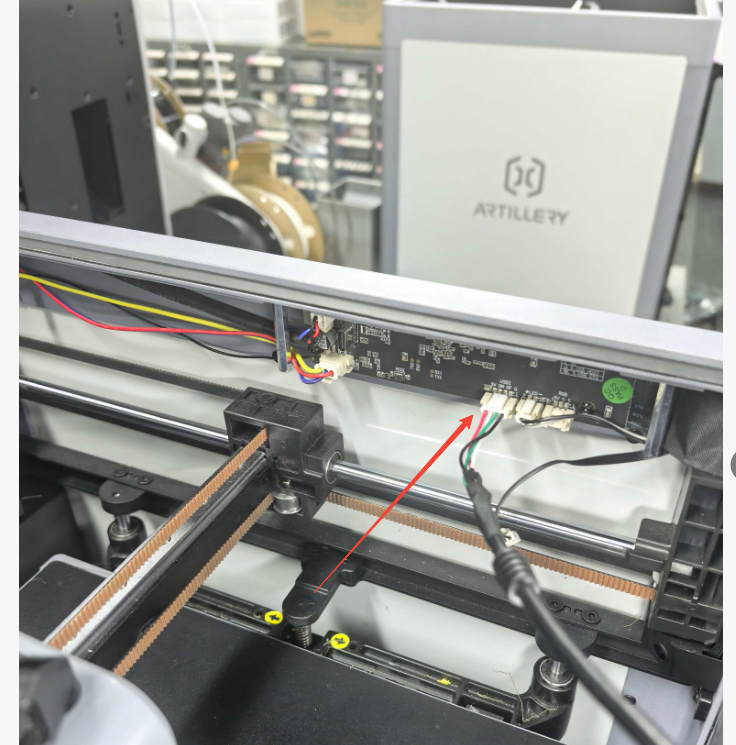

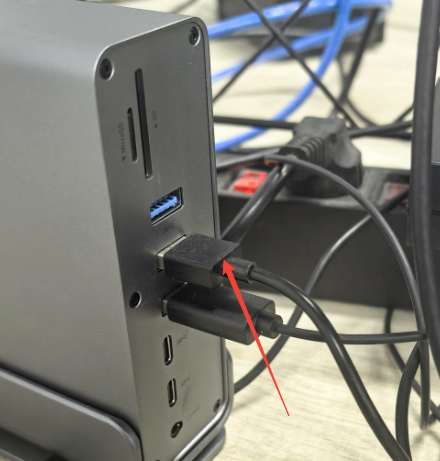

USBA plugs into the computer and HY2.0 plugs into the camera interface. Open the cover on the right side of the machine and you can see the motherboard.
Pictured
 |
 |

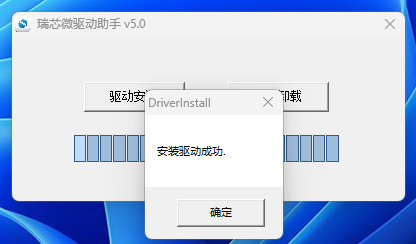

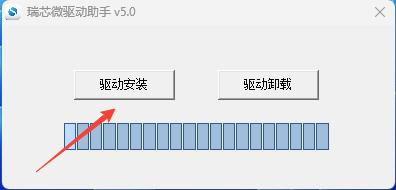

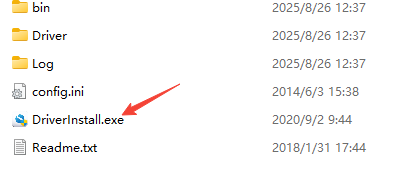

¶ Install the DriverAssitant driver
Driver Download ⇒ Driver Assistant
 |
 |
 |
¶ OTG burning image
¶ 1. jumper

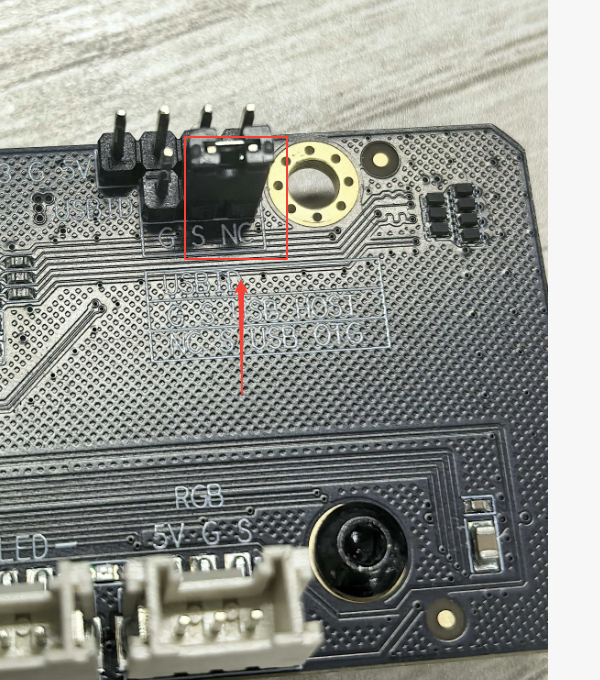

Connect the short connector cap of USBID to the S and NC pins.
Pictured：
¶ 2. Press the MOOE key first, and then turn on the power.

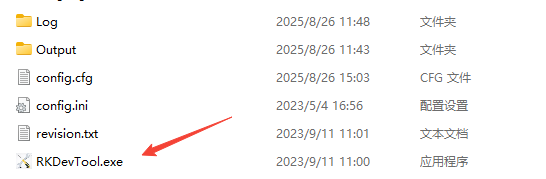

¶ 3. Open the software, RKDevTool.exe
RKDevTool ⇒ Software Download

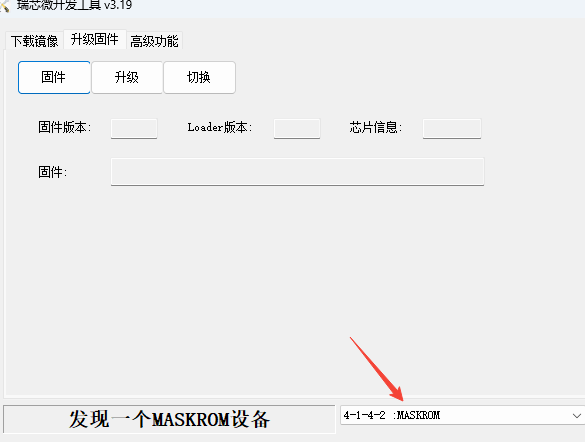

Seeing MASKROM means OTG recognition is successful.

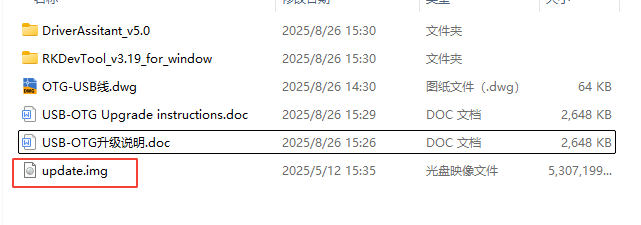

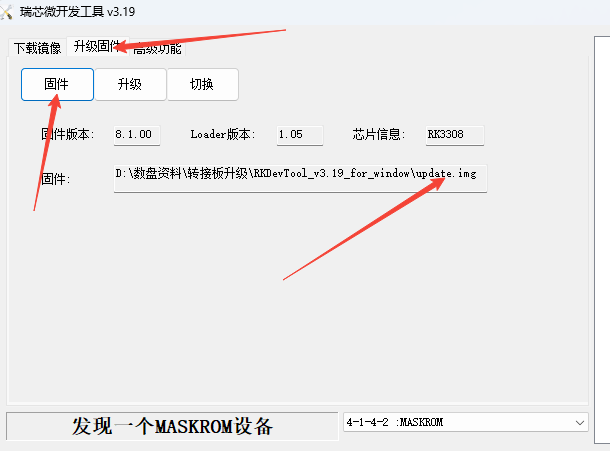

¶ 4. Load the mirror update.img
M1 Pro Image File Download ⇒ M1 Pro Image File
 |
 |

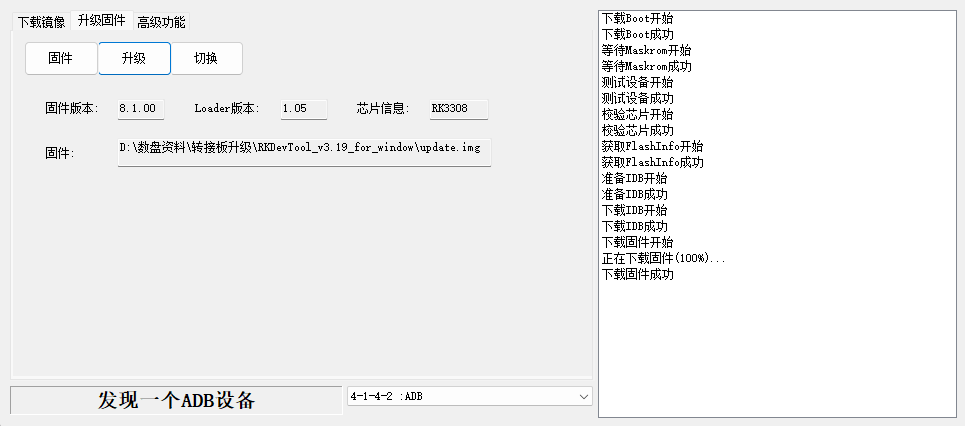

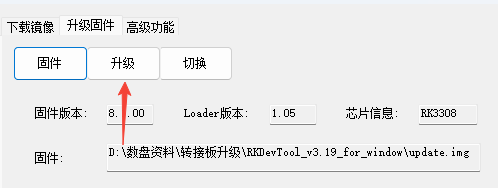

¶ 5. Click Upgrade
 |
 |
