Required Tools and Materials
Tool: Cutting pliers.

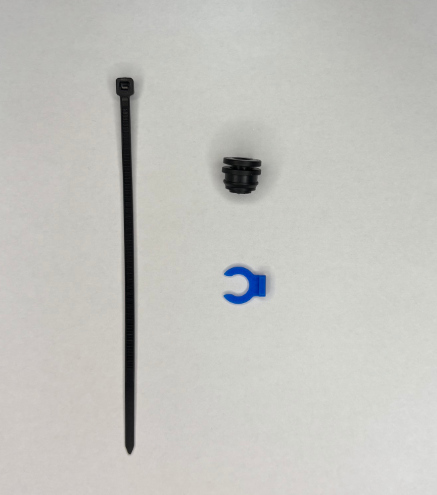

Materials: 1PCS cable tie, 1PCS Bowden tube, 1PCS Bowden tube buckle.
 |
¶ Disassembly of PTFE tube fittings

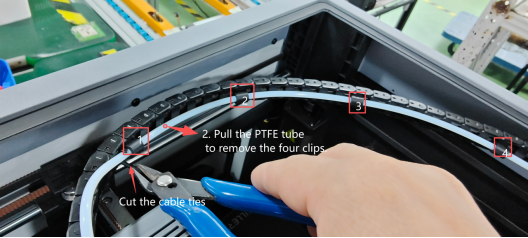

1. Use cutting pliers to cut the cable tie on the PTFE tube, and pull the PTFE tube to take out 4 buckles. Operate as shown in the figure.
-en_belindoc-1.png) |

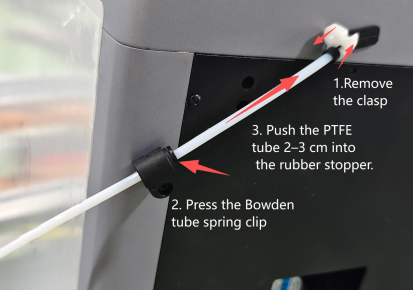

2. Remove the clip, manually press the Bowden tube seat spring, and insert the PTFE tube into the rubber plug direction for 2-3CM as shown in the figure.
-en_belindoc-9.png) |
¶ Tie Straps

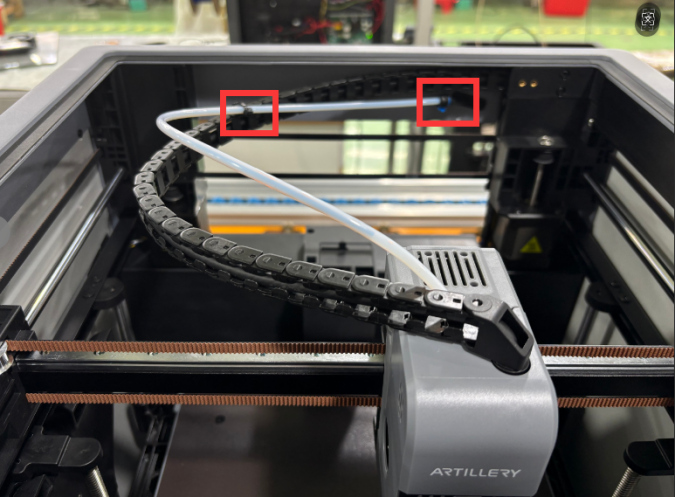

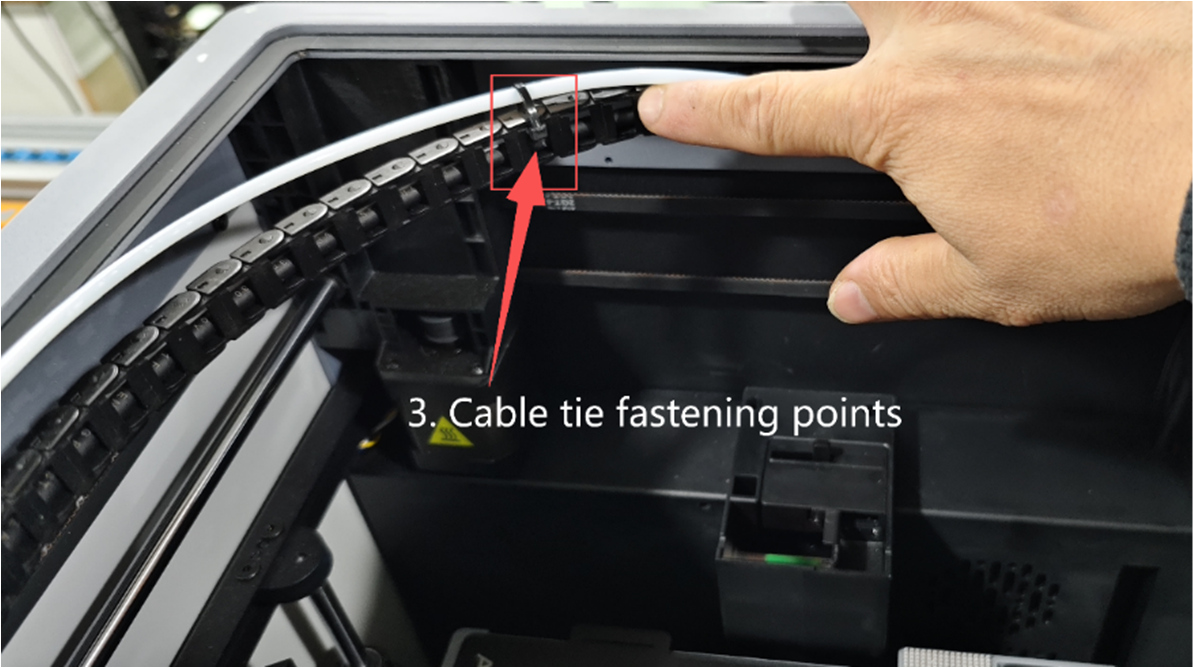

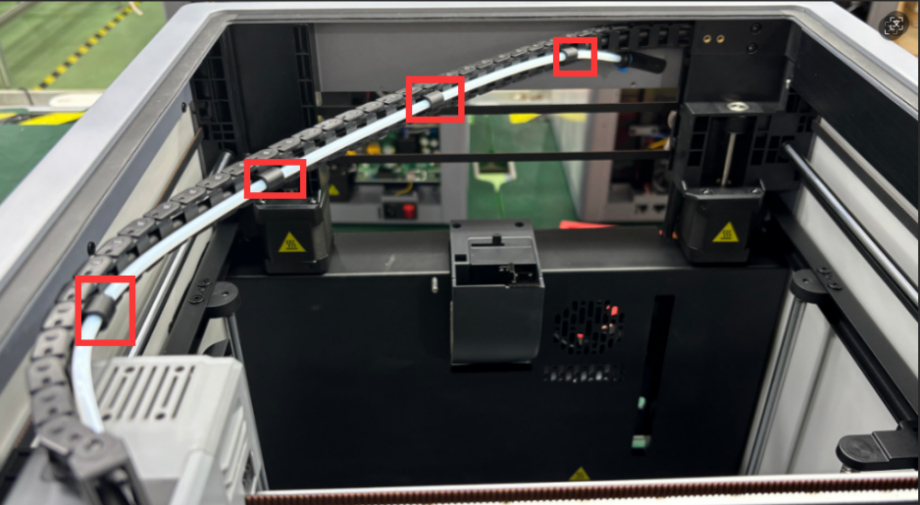

1. Press the drag chain backwards to fix the position of the lashing strap to ensure the range of motion of the drag chain, and the lashing strap will not interfere with or rub against the edge of the top frame. Use the lashing strap to pass through the drag chain hole to bundle and fix the PTFE tube. (Note: The lashing strap should not be tightened when bundling the PTFE, and a loose space should be reserved for the PTFE tube to move) as shown in the figure.
-en_belindoc-11.jpg) |

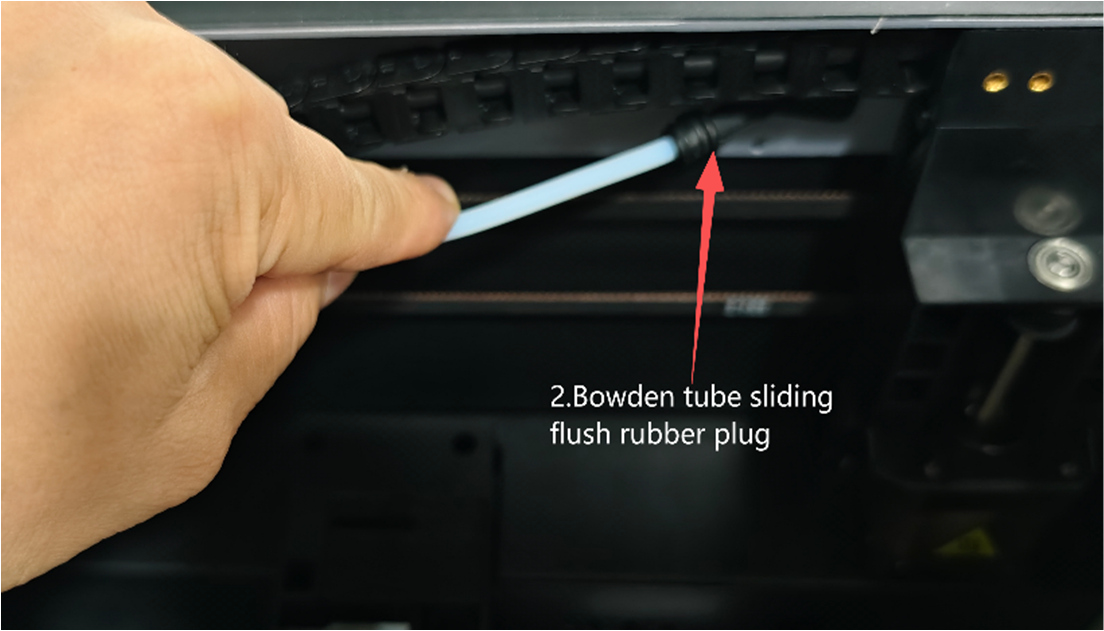

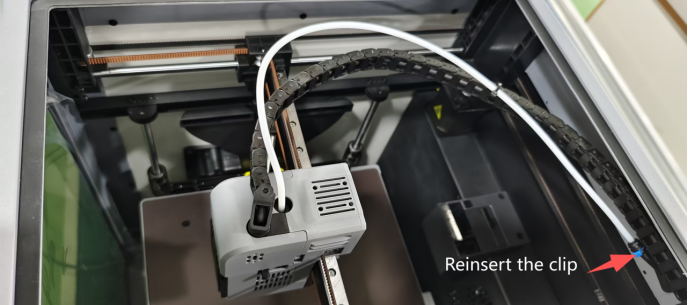

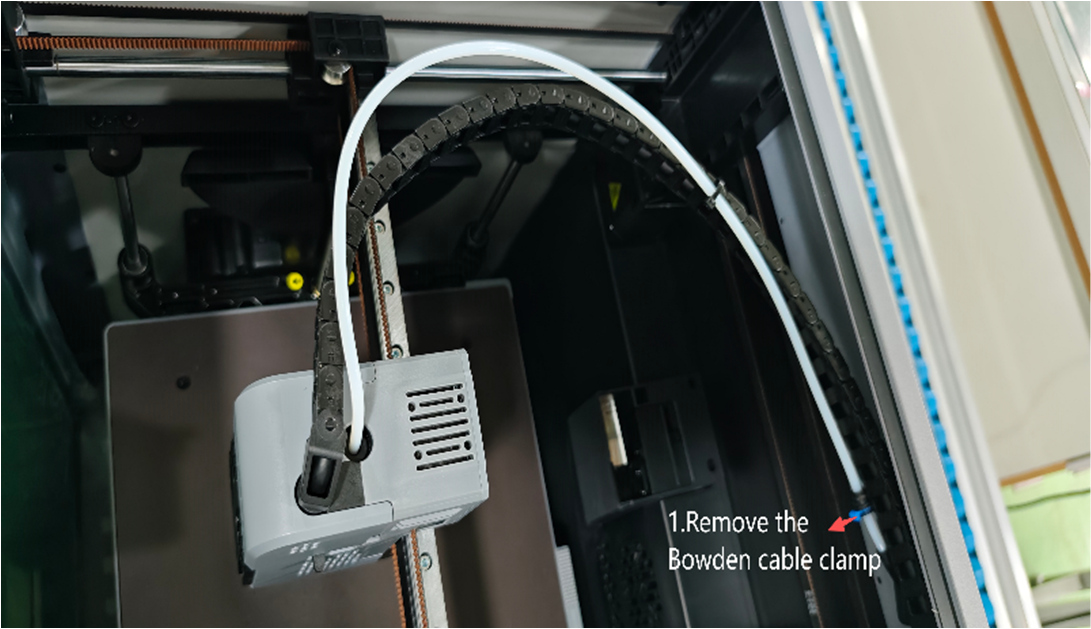

2. Move the Bowden tube fitting on the PTFE tube inside the cavity. Remove the Bowden tube buckle and push the Bowden tube towards the rubber stopper end face. As shown in Figure: a and re-snap the Bowden tube buckle(to prevent the Bowden tube assembly from squeezing the rubber stopper and automatically detaching during the feeding process). As shown in Figure: b
-en_belindoc-12.jpg)
|
-en_belindoc-13.jpg)
|
-en_belindoc-14.png)
|
If you have any questions or need help optimizing the above steps, please contact us by email support@artillery3d.com for after-sales service.support@artillery3d.com
